QNB-450 SOFT CANDY CUT & TWIST PACKER
零售价
0.0
Yuan
市场价
0.0
Yuan
浏览量:
1000
产品编号
数量
-
+
库存:
0
Products
[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]
PROFILES:
This machine mainly consists of packing paper roller, paper feeding device, paper cutting device, candy strip pulling device, strip pulling intermittent device, candy push and receive paper clip device, candy clamping rotator, paper folding device, twisting gear box, candy discharging device, mashi plate intermittent device, packing paper heat seal device, main gearbox and so on.
Paper conveying roller is controlled by hand bar, operator release packing paper when candy enters, if there is no candy enters, packing paper will not be fed, so as to save packing paper.
Use the optical electricity location device to locate packing paper position.
The controller displays packing speed. This machine can pack double layer packing paper (wax paper inside). Easy to dismantle this machine to maintain and clean.
Reliable frequency converter is used to adjust machine working speed. Heat temperature can be adjusted and displayed.

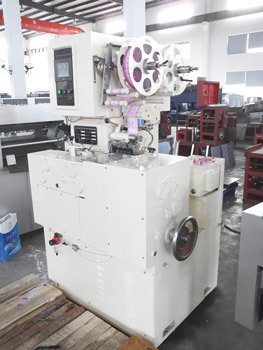

MACHINE PICTURES:
MAIN TECHNICAL PARAMETERS:
|
Max candy size |
60 * 25 * 16mm |
|
Mini candy size |
16 * 12 * 8mm |
|
Motor power |
2.2KW 380V |
|
Paper feeding motor |
4A 30V |
|
Heat seal galvanothermy tube |
0.2KW 220V |
|
Packing speed |
350-400grain/min (based on the different wrapping materials) |
|
Overall dimensions |
1138*1035*1810MM |
|
Weight |
about 1400Kg |
|
Packing Paper |
External paper: cellophane, aluminum |
|
Internal paper: Wax paper thickness 0.04mm, 50-80g/m2 |
