TK-550 CANDY SINGLE TWIST PACKER
零售价
0.0
Yuan
市场价
0.0
Yuan
浏览量:
1000
产品编号
数量
-
+
库存:
0
Products
[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]
FUNCTION:
The main core parts which adopt imported modern high precise type intermission gear-dividing and cam-driving, so all the action are very accurate.
AC-motors attached frequency converter realize infinitely variable speed controlling which is accurate, energy efficient, durable and adjustable during operation.
Controlled by computer automatically with PLC touch screen and photo-cell sensor device. The photoelectric detection and bi-directional tracking assure the speediness of tracking and accuracy of drawing, which can eliminate the error of packing and reduce the waste of packing film and raw materials, the packing rate can reach 100%.
Simens servo motor attached with feeding and cutting packing film dynamic adjustment without changing gears.
With function of overload protect, electricity leak protect, oil, circle, electric circle faults alarm, no film alarm.
Auto materials sending and feeding with double layer and two ways device. Keeping the candy away from attaint.
All parts that touched with food are stainless steel, and after special deal with the out-face, makes it looks more nice and solid and mooth, washes easily, meets ISO food hygiene standard.
Customer can use single layer or double layer packing film.
It can equip automatic hopper.

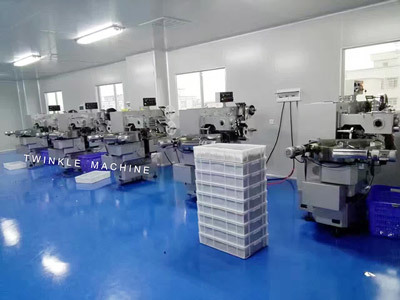

MACHINE PICTURES:
TECHNICAL PARAMETERS:
|
Model |
TK-550 |
|
Packing Materials |
BOPP+CPP, PET+CPP and other composite materials |
|
Packing Size |
Length: 16mm-30mm; Width: 16mm-28mm; |
|
Capacity |
10-350grain/min |
|
Total Power |
2.5KW |
|
Net Weight |
2000KGS |
|
Overall Dimension |
2330MM * 1440MM * 1800MM (L X W X H) |
