TKB MULTIFUCTION LOLLIPOP DEPOSITING LINE

Lollipop depositing line is a compact unit which can continuously produce various kinds of hard candies & lollipop under a strict sanitary condition. It is also an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.

Category:

Lollipop Machine

Keywords:

Candy Machine | Chocolate Machine | Packing Machine

Consult

Product Description

PROFILES:

PROCESSING CHART:

Raw material melting → Conveying → Filter → Storage → Constant syrup conveying →Pre-heating → Micro-film vacuum cooking → Discharging → Mixing with flavor and Color → Depositing → Cooling → De-moulding → Conveying → Packing

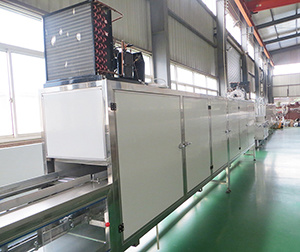

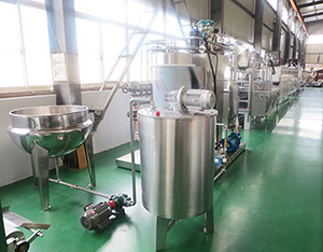

MACHINE PICTURES:

TKB MULTIFUCTION LOLLIPOP DEPOSITING LINE

MAIN TECHNICAL PARAMETERS:

Model	TKB-150	TKB-300	TKB-450	TKB-600
Capacity	150KG/H	300KG/H	450KG/H	600KG/H
Depositing speed	55-65n/min	55-65n/min	55-65n/min	55-65n/min
Steam consumption	250kg/h 0.5-0.8MPa	300kg/h 0.5-0.8MPa	400kg/h 0.5-0.8MPa	500kg/h 0.5-0.8MPa
Compressed air	0.2m3/min, 0.4-0.6MPa	0.2m3/min, 0.4-0.6MPa	0.25m3/min, 0.4-0.6MPa	0.3m3/min, 0.4-0.6MPa
Working condition	Temperature 20-25℃, humidity 45-55%
Electric power	18kw/380v	27kw/380v	34kw/380v	40kw/380v
Total length	15m	17m	17m	20m
Weight	3500kg	4000kg	4500kg	5000kg
